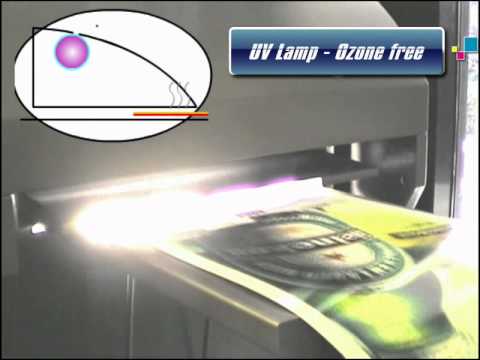

Video presentation

UVarnish

MGI Digital Graphic Technology is proud to present the offline UVarnish to complement its line of 4-Color digital presses and Finishing solutions for Paper and Plastic substrates.

The first "Push Button" UV coater available in the market, the UVarnish is both user-friendly and has the smallest foot print in it's class, and was designed to compliment both digital and offset printed paper or plastic substrates (Paper coated and sealed plastic surfaces like PVC,PET etc..) without requiring a fulltime operator or a large amount of floor space.

The UVarnish is also the first UV coater system to integrate an “Automated Recovery System” that ensures jobs, especially those with variable data, are not at risk. Environmentally friendly, the UVarnish also uses a UV curing technology that is ozone free.

Depending on the type of substrates and applications, various varnish finishes are available :
Matte, Glossy and Pre lamination varnish for plastic hot platen lamination

Flood UV Coating
SubstratesPapers: Glossy or Matte Coated
Plastics: PVC & PET
ThicknessFrom 150 gsm / 55 Lbs Cover
up to 500 gsm / 180 Lbs Cover
Input/Output- Large Capacity Automatic Feeder
- Double feed detection system
- Air suction conveyor
- Standard Jogging Table
- Optional Output stacker
FormatsFrom 14 x 29 cm / 5.5” x 11.4”
up to 36 x 52* cm / 14.2” x 20.5”
*extended length on request.
Production SpeedUp to 2,400 sheets 36 x 52 cm or 14.2” x 20.5” per hour
Available CoatingsGlossy, Premium, Over-print & Matte
UV Lamp4 kW mercury UV lamp
Ozone Free
Up to 1,500 hour lifetime
IR Lamp2 kW infrared lamps
5,000 to 8,000 hour lifetime
Electrical Requirements400 V 3P+N+E, 50/60Hz, 18 kW
Weight±360 kg
792 lbs
Dimensions(L x H x W)
2.74 x 1.35 x 0.84 m
107.8” x 33.3” x 53.1”
Language Title Download Link
English UVarnish
Français UVarnish
Serbian UVarnish
Product Advantages

Quality

MGI's UVarnish delivers a smooth, consistent coating on both digitally and offset printed substrates. No more orange peel or scratching - the integrated UV and IR lamps ensure a premium finish that's immediately dry and ready for finishing.

Added Value

Create instant added value to all your documents. At an a cost of less than a few cents per sheet, exponentially multiply the value of each sheet.

The UVarnish can handle a large number of applications. Whether you want to protect your documents or give them immediate photolike quality value, the UVarnish is ideal for handling:
Brochures, book covers, photos and photo books, postcards, posters, POP, plastic cards, calendars, mailing, etc. ...

Ease of Use

A true "push-button" UV coater, the UVarnish is truly user-friendly and easily integrates into your workflow.

Safety

The UVarnish features ozone-free operation and a double-sheet detection sensor, preventing costly double feeds, plus sensors along the paper path alert the operator to any misfeeds.

Footprint

MGI's UVarnish has one of the smallest footprints among production flood UV coaters. The integrated IR lamp dries prints on-the-fly, which eliminates the need for long drying conveyors.

Offset or Digital Print

Digital or offset, the UVarnish can coat it all! With standard sheet sizes up to 36 x 52 cm / 14 x 20" (and extended feed options up to 1020 mm / 40 inches in length, the UVarnish is the perfect complement to your workflow.

Product Applications


Book Covers (XL Format)

(click on the icon to zoom out)

MGI provides a range of printing and value-added finishing options for book covers on a range of substrates, including paper and canvas.



Business Cards

Produce beautiful 4-color business cards (in the shortest of runs), and finish spot UV coating or hot foil stamping and embossing...MGI has a solution for you.



Calendars

Whether it's a simple desktop calendar or an eye-catching 1200 mm / 47" banner, MGI has a solution for every calendar application.



Menus

Print on paper or onto synthetics such as Yupo or polyester for additional durability.



Photobooks

MGI's digital printing and finishing solutions offer a wide range of options for custom photo products, such as photobooks. Take an active part in the 25 million of photobooks that will be produced in 2013.



Brochure & tri-fold

Whether it's a simple duplex page or tri-fold (up to 1200 mm/47" long) document, MGI's Digital Presses can produce a wide range of creative and attractive brochures.



Point of Sales Material

From price tags to register signs, window clings to table tents, MGI's multi-substrate digital printing and finishing solutions can help increase your in-store presence.



Postcards

Postcards, photo cards, personalized direct mail campaigns...the only limit is your imagination!
